Futon Hinges Set (Click Click)

<< Previous in Futon Parts & Hardware Next in Futon Parts & Hardware >>
Futon Hinges Set (Click Click)
Futon Hinges Set (Click Click)Click Click Hinge Close Up
Price: $74.95
Item Number: FF-01-0120-000

Product Options

* denotes required field

This Item is Returnable Less Shipping and Processing Fees*
Would you like to order a Hardware Set?*

Click Click Futon Hinges

Click / Click Metal Futon Hinges- This item is a Pair of Quality Metal Futon Hinges.  These hinges let your futon operate from the front.  When you lift the seat the hinges click and then release.  When the frame is in a bed, you lift the seat and it clicks and locks, and then you tip the seat down, and the back comes up at the same time.  They are also known as Futon Transmissions and are used on Metal Futon Frames or Futon Frames with Wooden Arms and a Metal Seat and Back Deck.  These will typically interchange with Standard Hinges.  You may also order an Optional set of hardware for a metal frame.

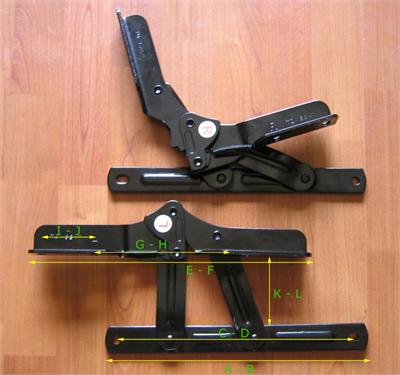

Dimensions

A to B = length of the bottom of one hinge is 12.5 "
C to D = length from the center of each hole that attaches the hinge to the arms of the frame is 11 5/16"
E to F = distance between the 2 holes in the top of the hinge which attach to the Seat or Back is 12 3/4"
G to H - Distance between each set of 2 holes which attach the Seat or Back is 6 5/8"
I to J = Overall length of the top surface which the seat and back attach to is 2 3/8"
K to L = Approximate distance from top of main hinge support to bottom of seat and back deck support is 3 3/8"
Note: Sizes above are not measured with a Micrometer and could be off by a little.  They are not exact but are pretty darn close.
